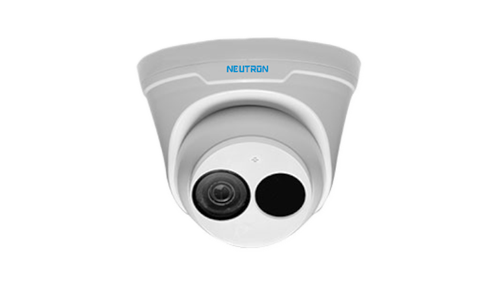

NEUTRON IPC3612LR3-PF28-E IP GÜVENLİK KAMERASI

Ürün Özellikleri

	IPC3612LR3-PF28-E			IPC3612LR3-PF40-E
Camera
Sensor	1/2.7″, 2megapixel, progressive scan, CMOS
Lens	2.8mm@F2.0			4.0mm@2.0
DORI Distance	Lens	Detect(m)	Observe(m)		Recognize(m)	Identify(m)
	2.8mm	46.7	18.7		9.3	4.7
	4.0mm	66.7	26.7		13.3	6.7
Angle of view(H)	112.7°			86.5°
Angle of View (V)	60.1°			44.1°
Angle of View (O)	146.5°			106.4°

Kategoriler: ÜRÜNLERİMİZ

Açıklama

Henüz inceleme yapılmadı.

“NEUTRON IPC3612LR3-PF28-E IP GÜVENLİK KAMERASI” için yorum yapan ilk kişi siz olun

	IPC3612LR3-PF28-E				IPC3612LR3-PF40-E
Camera
Sensor	1/2.7″, 2megapixel, progressive scan, CMOS
Lens	2.8mm@F2.0				4.0mm@2.0
DORI Distance	Lens	Detect(m)		Observe(m)		Recognize(m)		Identify(m)
	2.8mm	46.7		18.7		9.3		4.7
	4.0mm	66.7		26.7		13.3		6.7
Angle of view(H)	112.7°				86.5°
Angle of View (V)	60.1°				44.1°
Angle of View (O)	146.5°				106.4°
Shutter	Auto/Manual, 1~1/100000 s
Adjustment angle	Pan: 0°~360°		Tilt: 0°~90°				Rotate: 0°~360°
Min. Illumination	Colour: 0.02 Lux (F2.0, AGC ON) 0 Lux with IR
IR Range	Up to 30m (98 ft) IR range
Day/Night	IR-cut filter with auto switch (ICR)
S/N	>52dB
WDR	Supported
Noise Reduction	2D/3D
Video
Max. Resolution	1920×1080
Video Compression	Ultra 265,H.265,H.264,MJPEG
H.264 code profile	Baseline profile, Main Profile
Frame Rate	Main Stream:1080P (19201080): Max. 30 fps; Sub Stream: 720P (1280720): Max. 30 fps; Third Stream: CIF (352*288): Max. 30 fps
HLC	Supported
BLC	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
Network
Protocols	IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL
Compatible Integration	ONVIF(Profile S, Profile T),API
Interface
Network	10/100M Base-TX Ethernet
General
Power	12 V DC±25%, PoE (IEEE802.3 af)
	Power consumption: Max 4.5W
Dimensions (Ø x H)	?118x 96 mm (?4.6” x 3.8”)
Weight	0.3kg (0.44lb)
Working Environment	-30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
Ingress Protection	IP66
